Cash Acme NCLX-8 3/4" Pressure-Temperature Relief Valve 210° W/extension

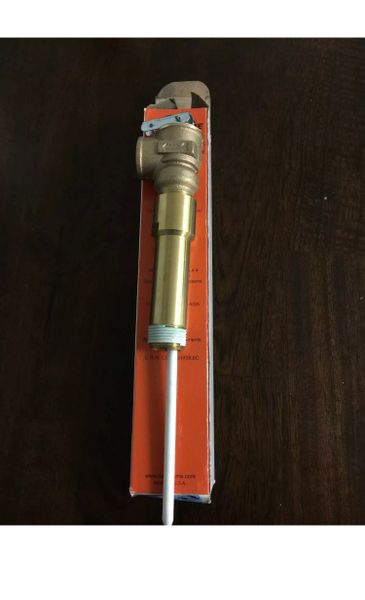

This is a brand new never used in original packaging Cash Acme automatic reseating pressure-temperature relief valve for water heaters model NCLX-8. 3/4" with tested lever and coated thermal element. 210 degrees. It is the model with the extension
Cash Acme NCLX Combination Temperature and Pressure Relief Valves are designed for the protection of water heaters and storage tanks.
Cash Acme NCLX Valves are designed to meet ANSI Z21.22/CSA 4.4 and ASME Boiler Code Section IV in most configurations (see Certifications for details) and are ideal for all domestic water heater applications.
Cash Acme NCLX Valves are completely automatic and reseat after either temperature or pressure relief. They are offered in 1/2" and 3/4" sizes with male inlets and female outlets. The NCLX Valve incorporates an innovative “white coat” thermal element coating; an inert covering that provides effective isolation from mineral deposits (liming) and galvanic corrosion, offering many years of dependable safety protection.
The NCLX-5 model provides the standard length body and thermal element. Five models of the 3/4" size are available with extended length bodies (NCLX-5S, NCLX-5L, NCLX-5LX, NCLX-LS and NCLX-A) for use with super-insulated water heaters. The 3/4" NCLX-8 model is available for applications where an extended thermal element is required, and the NCLX-1 is available for applications where a reduced length thermal element is required.
Cash Acme NCLX Valves come with standard factory settings of 150 psi for pressure relief and 210°F for temperature relief. Most models are also available in a 125 psi factory setting. A 75 psi and 175 psi factory setting is also offered for the 3/4" NCLX-1 and 3/4" NCLX-5. The 3/4" NCLX-5, NCLX-5LX, and NCLX-A are also available with a factory temperature relief setting of 180°F (combined with factory pressure setting of 100 psi).
The NCLX Series Relief Valves feature a cast bronze body, brass and stainless steel internal parts, silicone seat disc, and stainless steel pressure spring.
Lead Free* versions of most models are available.
••••FEATURES AND BENEFITS••••
Incorporates an inert thermal element coating:
Provides effective isolation from mineral deposits (liming) and galvanic corrosion.
Completely automatic and reseats after temperature or pressure relief:
Ideal for all domestic water heater applications.
Listed by CSA (ANSI Z21.22/CSA 4.4) and the National Board (ASME Boiler Code Section IV):
Inspector friendly, peace of mind!
Every valve is tested for performance prior to shipping:
Specify and install with confidence!
A temperature and pressure relief valve shall be installed to protect the water heater or water storage tank from excessive temperature and pressure. The valve shall be ASME and CSA listed and shall be design certified per ANSI Z21.22/CSA 4.4. The valve shall have a BTU rating in excess of the input rating of the water heater in which it is installed. The valve shall be a Cash Acme NCLX T&P Relief Valve.
Any questions feel free to ask
Thanks for looking
