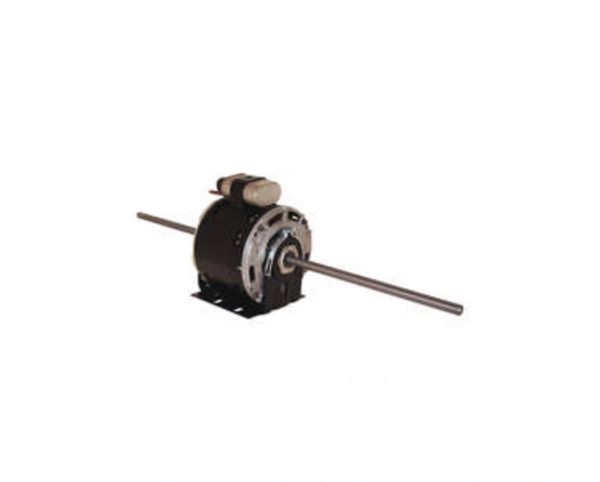

• Century 4UU30 Permanent Split 1/6 HP AC Motor Replacement NEW

    $149.95
    Free Shipping!

    There is only 1 item left in stock.

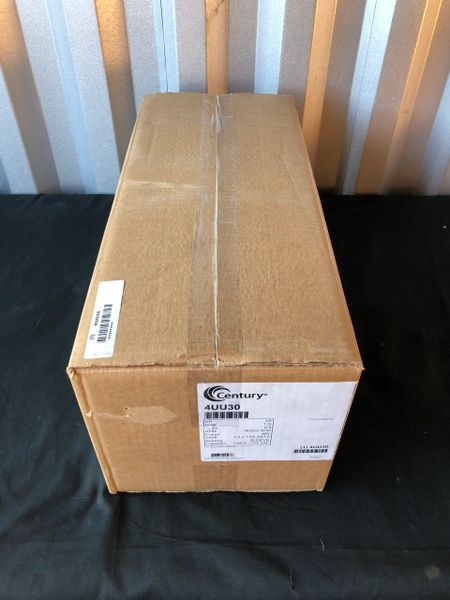

    This is a brand new never used in original packaging Century 1/6 HP permanent split ac replacement motor model 4UU30


    ••••FEATURES••••

    •Item: Room Air Conditioner Motor

    •Motor Application: HVAC/R

    •Motor Sub Application: Room Air Conditioner

    •Motor Design: Permanent Split Capacitor

    •Motor Enclosure Design: Open Air-Over

    •Duty: Continuous

    •HP: 1/6

    •Nameplate RPM: 1625

    •Voltage: 115

    •Frame: 48Y

    •Motor Service Factor: 1.00

    •Hz: 60

    •Full Load Amps: 2.4

    •Motor Thermal Protection: Auto

    •Ins. Class: B

    •Max. Ambient Temp.: 40 Degrees C

    •No. of Speeds: 2

    •Motor Shaft Rotation: CW/CCW

    •Phase: 1

    •Motor Mounting Type: Cradle Base

    •Motor Bearings: Sleeve

    •Body Dia.: 5-5/8"

    •Length Less Shaft: 5-1/8"

    •Motor Shaft Design: Flat

    •Shaft Dia.: 1/2"

    •Shaft Length: 7"

    •Ring to Ring Center: 4-11/16"

    •Resilient Ring Dia.: 2-1/2"

    •Lead Length: 25"

    •RPM Range: 1601-1700

    •Capacitor Required: Included

    •Standards: UL, CSA


    Any questions feel free to ask

    Thanks for looking
