• Dayton 4RU79 Cast Iron 1-1/2 HP Centrifugal Pump 115/230V NEW

    $399.95
    Free Shipping!

    There is only 1 item left in stock.

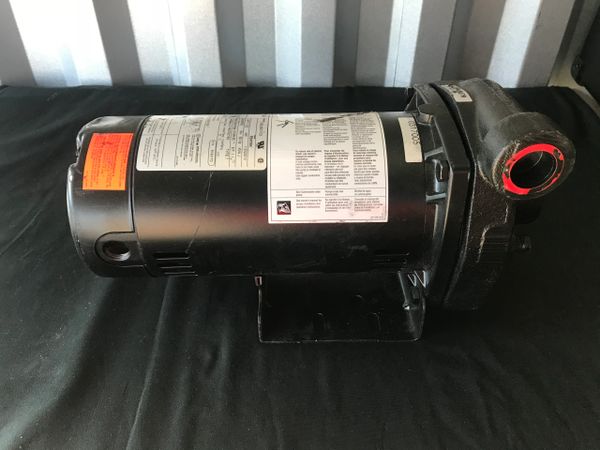

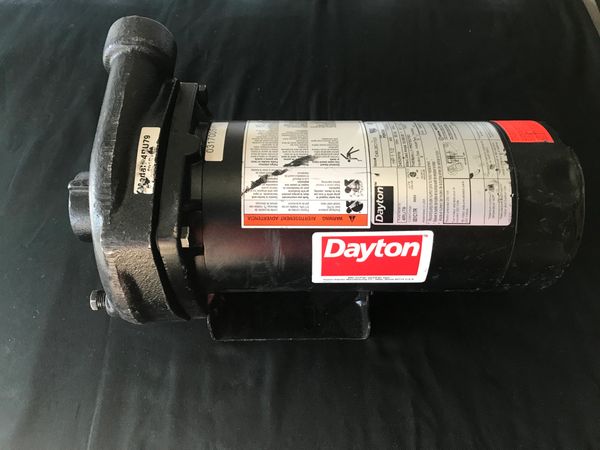

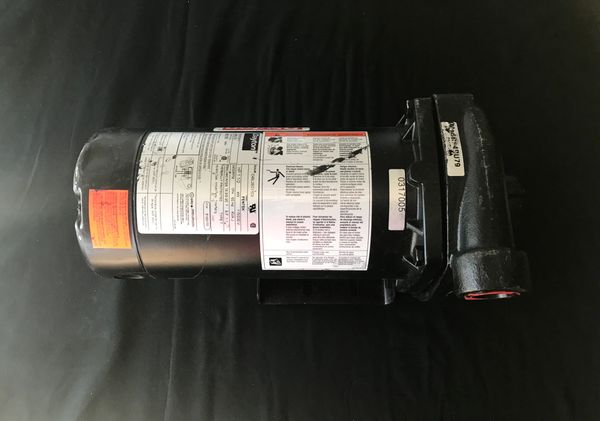

    This is a new never used Dayton cast iron 1 1/2HP 3450 RPM single phase Centrifugal pump model 4RU79


    ••••SPECIFICATIONS••••

    Centrifugal Pump

    Close Couple: Yes

    Housing Material: Cast Iron

    HP: 1-1/2

    Phase: 1

    Voltage: 115/230VAC

    Amps: 19.9/9.95

    Hz: 60

    Inlet: 1-1/4"

    Outlet: 1"

    Motor Enclosure: ODP

    NEMA/IEC Frame: 48Y

    Motor RPM: 3450

    Service Factor: 1.1

    Impeller Type: Closed

    Impeller Material: Noryl

    Impeller Dia.: 5-1/4"

    Shaft Material: Stainless Steel

    Seal Type: Type 21

    Seal Material: Buna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts

    Max. Liquid Temp.: 140 Degrees F

    GPM of Water @ 20 Ft. of Head: 70

    GPM of Water @ 30 Ft. of Head: 68

    GPM of Water @ 40 Ft. of Head: 66

    GPM of Water @ 50 Ft. of Head: 61

    GPM of Water @ 60 Ft. of Head: 57

    GPM of Water @ 70 Ft. of Head: 52

    GPM of Water @ 80 Ft. of Head: 48

    GPM of Water @ 90 Ft. of Head: 41

    GPM of Water @ 100 Ft. of Head: 35

    GPM of Water @ 110 Ft. of Head: 23

    Max. Head: 118 ft.

    Min. GPM @ Head: 23 @ 110 ft.

    Max. GPM @ Head: 70 @ 20 ft.

    Best Efficiency GPM @ Head: 45 @ 85 ft.

    Best Efficiency Range GPM @ Head: 30-56 gpm @ 112-62 ft.

    Max. Specific Gravity: 1

    Wetted Materials: Stainless Steel, Carbon, Cast Iron, Noryl, Ceramic, Buna-N

    Max. Case Pressure: 100 psi

    Max. Fluid Viscosity: 1 cP

    Max. Pressure: 125 psi

    Bearing Type: Ball

    Number of Port Positions: 4

    Drain Plug Position: 4 Position

    Liquid Compatibility: Nonflammable, Non Abrasive

    Length: 13-3/4"

    Width: 7-13/16"

    Height: 8-5/8"

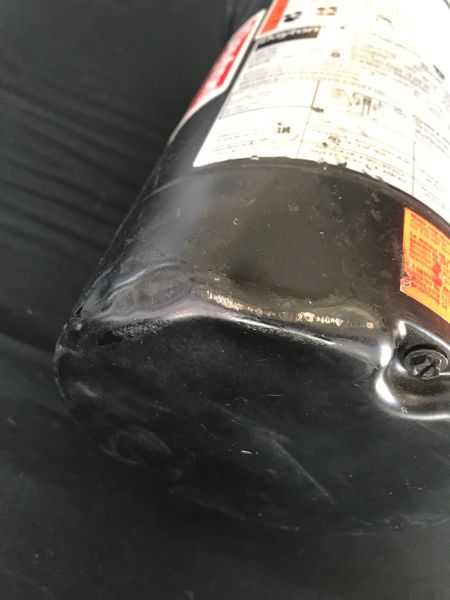

    The pump has scuffs/ scratches from storage and also is dented on one end as shown in picture 8



    Any questions feel free to ask

    Thanks for looking
